AC-NH Commercial GradeMeta-aramid Honeycomb

Industrial-grade meta-aramid paper honeycomb is made of domestic meta-aramid paper impregnated with phenolic resin.

立即联系定制

首页 > 产品中心

产品说明

AC-NH Commercial GradeMeta-aramid Honeycomb

·High specific strength

·High temperature resistant, can be used for autoclave forming at temperatures above 200℃

·Wide density range, from 32-200kg/m3

·Excellent creep and fatigue properties

·Outstanding thermal insulation and sound insulation performance, more comfortable, energy-saving and environmentally friendly

·Corrosion resistant and radiation resistant

·Flame retardant, low smoke, low toxicity

(Complies with strict flame retardant and smoke toxicity standards for aviation and rail transportation, and has passed the test)

Product Features

AC-NH:Industrial-grade meta-aramid paper honeycombs are made from domestically produced meta-aramid paper impregnated with phenolic resin. Aramid honeycombs are ultra-lightweight and high-strength. They also possess excellent flame retardancy, corrosion resistance, dielectric properties, and fatigue resistance.

Application

AC-NH It is widely used in aviation, rail transportation, ships, radar antenna covers, military shelters and other fields.

Size Definition：

T=thickness, or cell depth L=ribbon direction W=long direction, or direction perpendicular to the ribbon

d (mm)

3.2

4.0

4.8

6.4

8.0

9.5

a (mm)

1.83

2.29

2.75

3.67

4.5

5.5

Noted

d:Diameter of inscribed circle

a:Length of a hexagonal side

d= a√3

Tolerances:

Length

>0mm

Density

±10%

Width

>-5mm

Cell size

±10%

Thickness

2~50mm

±0.2mm

50.01~100mm

±0.5mm

>100.01mm

±3mm

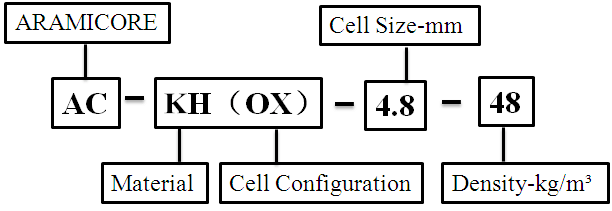

AC-NH Aramid paper honeycomb is specified as follows:

AC-NH Mechanical Properties

Aramicore Honeycomb Designation Material-Cell Size-Density NH mm kg/m3	Compression (MPa)		Plate Shear(MPa)
	Bare		“L” Direction			“W” Direction
	Strength		Strength		Modulus	Strength		Modulus
	Avg.	Min.	Avg.	Min.	Avg.	Avg.	Min.	Avg.
AC-NH-1.83-32	0.63	0.55	0.60	0.52	30	0.33	0.28	16
AC-NH-1.83-40	1.25	0.91	0.80	0.70	38	0.41	0.35	22
AC-NH-1.83-48	1.93	1.65	1.10	0.98	54	0.60	0.54	28
AC-NH-1.83-56	2.51	2.27	1.35	1.14	63	0.83	0.68	39
AC-NH-1.83-64	3.10	2.85	1.64	1.36	72	1.05	0.82	48
AC-NH-1.83-72	3.65	3.30	1.78	1.48	81	1.13	0.93	54
AC-NH-1.83-80	4.21	3.86	1.95	1.60	90	1.21	1.03	60
AC-NH-1.83-128	10.60	9.48	3.04	2.77	144	1.81	1.71	84
AC-NH-1.83-144	11.81	10.23	3.33	2.93	175	2.01	1.75	96
AC-NH-2.75-32	0.70	0.59	0.62	0.54	34	0.37	0.29	18
AC-NH-2.75-40	1.26	0.95	0.81	0.72	40	0.43	0.39	24
AC-NH-2.75-48	1.95	1.68	1.11	1.07	57	0.61	0.59	30
AC-NH-2.75-56	2.52	2.28	1.36	1.15	65	0.82	0.70	40
AC-NH-2.75-64	3.20	2.90	1.63	1.35	71	1.02	0.81	47
AC-NH-2.75-72	4.78	4.20	1.97	1.61	95	1.23	1.05	64
AC-NH-2.75-96	6.29	5.48	2.35	1.97	105	1.54	1.32	72
AC-NH-3.67-40	1.25	0.96	0.80	0.64	40	0.43	0.37	25
AC-NH-4.50-40	1.27	0.94	0.79	0.63	39	0.42	0.36	23
AC-NH-5.5-40	1.28	0.97	0.78	0.62	37	0.41	0.35	21
AC-NH-5.5-48	1.85	1.65	1.08	0.93	52	0.59	0.52	27
AC-NH(OX)-2.75-48	1.80	1.61	0.90	0.76	48	0.92	0.73	45

This table presents guarantee values of AC honeycomb obtained from testing specimens of 12.7mm. thickness at RT. All data are representative at the nominal product density. Data is based on results gained from experience and tests and is believed to be accurate yet without acceptance of liability for loss or damage incurred and attributable to reliance thereon as conditions of use lie outside our control.。

Domestic paper, full hole grid,

Three major varieties: meta/para/absorber.

Low, medium, high density, maximum size.

Aperture	inch	1/8，5/32，3/16，1/4，5/16，3/8
Aperture	mm	3.2，4.0，4.8，6.4，8.0，9.5
Density	pcf	2.0，2.5，3.0，4.0，5.0，6.0，8.0，9.0，10.0
Density	kg/m3	32，40，48，64，80，96，128，144，160
Size	inch	48×96；51×102；63×126；
Size	mm	1220×2440；1300×2600；1600×3200
Thickness	inch	0.04~35.43
Thickness	mm	1~900
